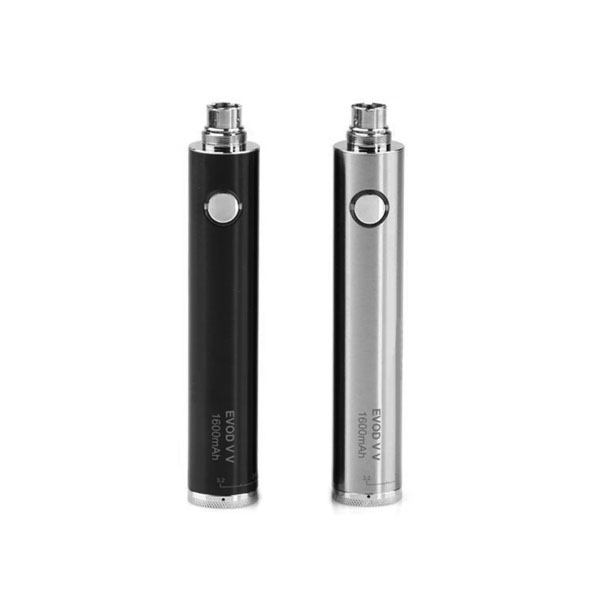

Evod 1600mah VV Battery Features:

Variable Voltage (VV) 3.2 Volts – 4.8 Volts

Capacity: 1600mAh

Protection: 10 second cut off

Charging: 500mAh 510 charger (sold seperately)

Spring Loaded pin in the 510 thread connection

Thread: both 510 and eGo

Size: 18.5mm Diameter x 105mm Length

Manual operation: Press button to vape.

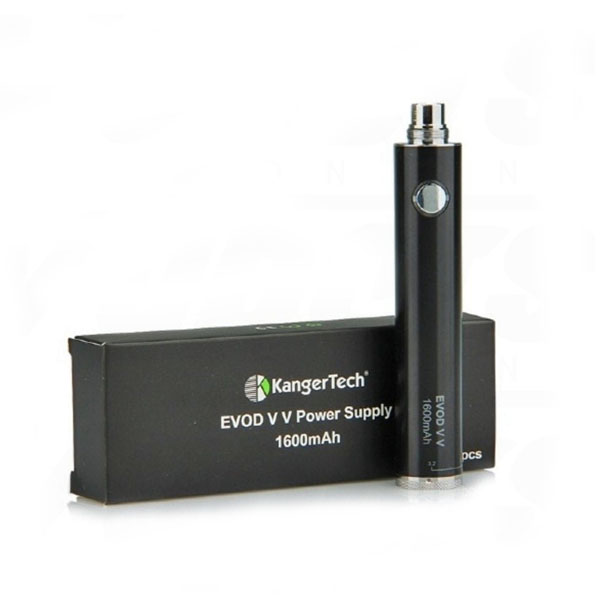

Evod VV 1600 Box Contents:

1 x EVOD VV 1600 mAh battery

Please note: The package does NOT include the Kangertech USB charger

How to use your Evod VV 1600mAh Battery:

1. Click button 5 times (within 2 seconds) to turn On and Off
2. Press the button to vape
3. When the battery needs charging the light around the button will blink several times
4. Remove the tank and clean the connection with a bit of kitchen towel.
5. Connect the battery to the Kangertech USB Charger (sold seperate).
6. When charging the light behind the button flashes a few times and then turns red and blinks between green/red. When the battery has reached a full charge, the charger light shows solid green.
7. Charge the battery when ever you need a charge there is no need to wait until empty, infact over discharge can cause more damage than good.
8. Turn the battery off if it is going in your pocket or bag as the button can accidentally get pressed.
